Parker-Hannifin 1500 psi In-line Check Valve NEW

Be the first to review this product

Availability: In stock

$9.99

Qty Available: 3

OR

Parker-Hannifin

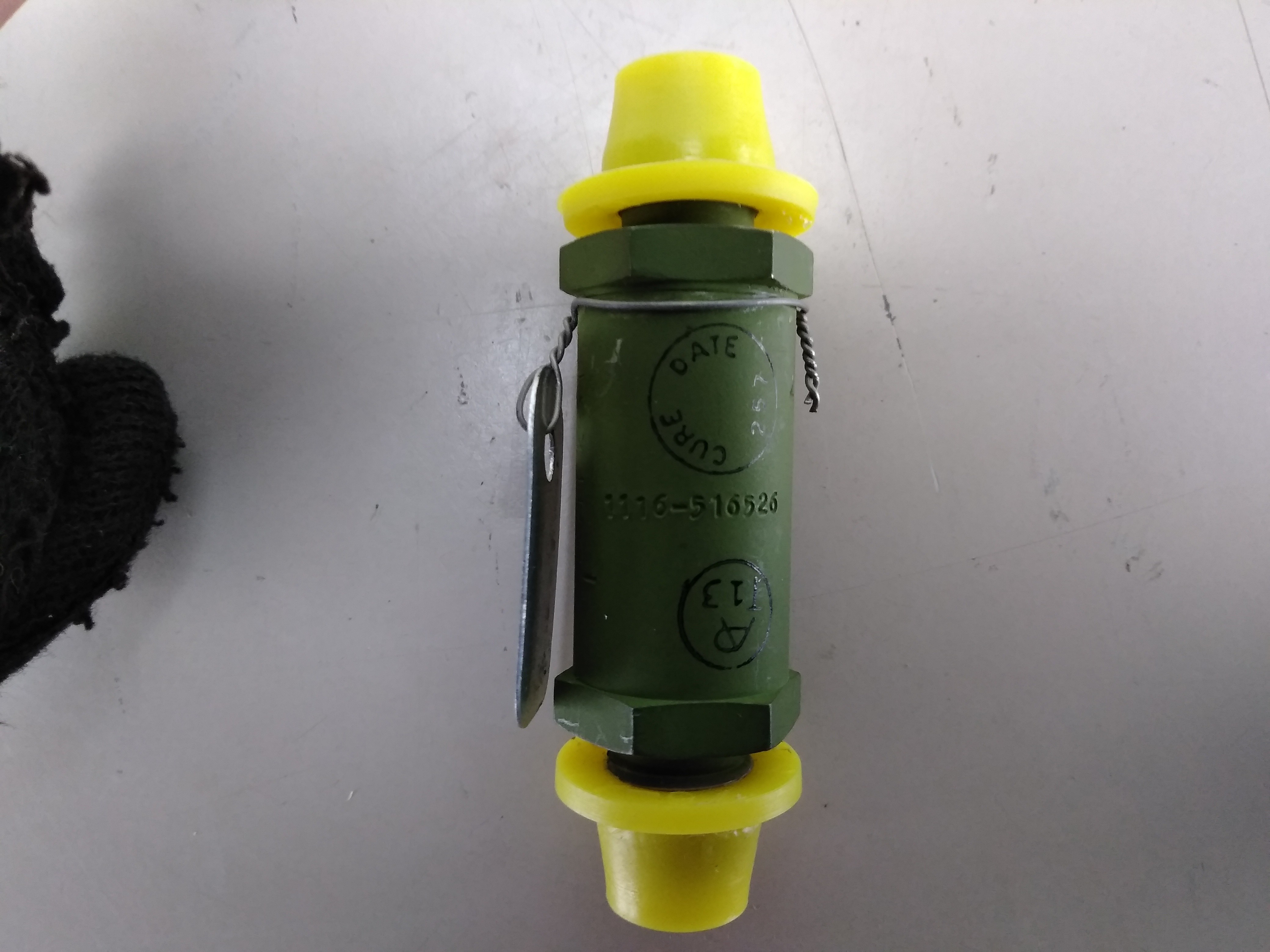

Parker-Hannifin 1500 psi In-line Check Valve NEW

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

This is a Parker-Hannifin 1500 psi In-line Check Valve NEW. The specs are:

  • Thread Class 3A 1ST end
  • AAJF Thread Direction Right-hand 1ST end
  • ADQU Flow Control Device CONE
  • ADSU Disk Loading Method Spring
  • AHNC Connection Style Flared (tube) 1ST end
  • AQLR Valve Operation Method Automatic
  • AWLS Connection Type Threaded external tube 1ST end
  • BBJX Mounting Position Horizontal
  • CMLP Thread Quantity PER Inch 18 1ST end
  • CQGM Maximum Operating Pressure 750.0 pounds per square inch single response
  • CQJX Nominal Thread Size 0.562 inches 1ST end
  • CQRB Seat Angle 37.0 degrees 1ST end
  • CWFD Nominal Outside Diameter Tube Accommodated 0.375 inches 1ST end
  • MATT Material Aluminum alloy body
  • MATT Material Aluminum alloy seat
  • MEDA Media FOR Which Designed Fuel/oil, hydrocarbon single response
  • SFTT Surface Treatment Anodize
  • STYL Style Designator Straight thru
  • THSD Thread Series Designator Unf 1ST end

Additional Information

SKU 48114
UPC Does not apply
Brand Parker-Hannifin
Part Number 1116-516526
Condition New
Free Shipping No
