Details

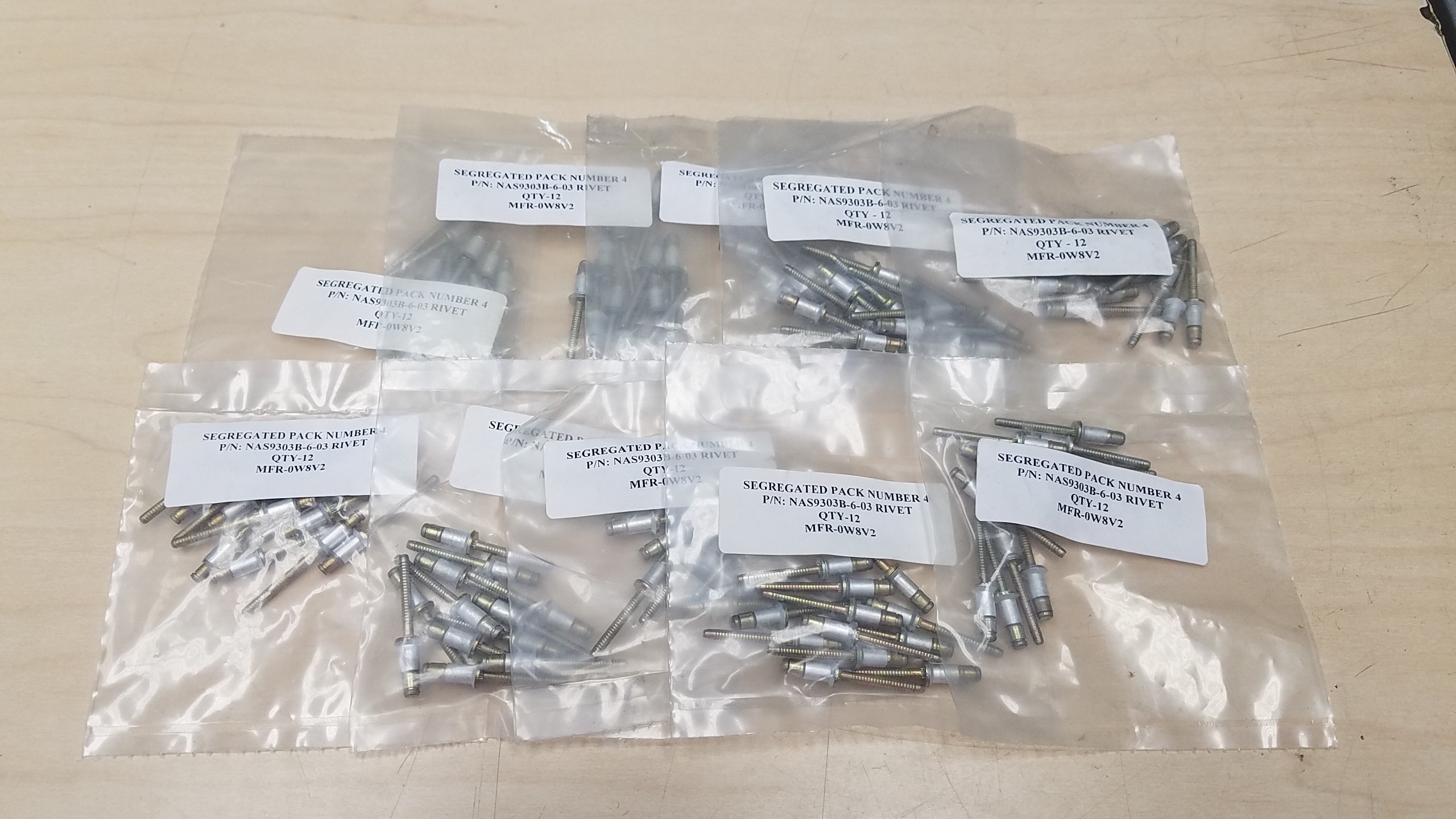

This is a lot of 120 new blind rivets NAS9303BNS-6-03. The rivets are military surplus made in the USA.
AASK |
Head Style |
Flush (flat) countersunk (included angle - less than 135 deg W or W/O chamfer) |
AAZE |
Shank Diameter |
0.1880 inches minimum and 0.1920 inches maximum |
AAZF |
Shank Style |
Blind rivet, nut and bolt (assembly) |
AAZG |
Head Major Diameter |
0.2800 inches minimum and 0.2980 inches maximum |
ABAF |
Expansion Device |
Plain stem-type T |
ANEE |
Grip Length |
0.1260 inches minimum and 0.1870 inches maximum |
CRSQ |
Countersink Angle |
99.0 degrees minimum and 101.0 degrees maximum |
MATT |
Material |
Steel comp 8740 locking ringaluminum alloy 5056 sleeveiron alloy 660 stem or steel comp 304 stem |
