Gigabyte GA-78LMT-USB3 AMD Motherboard AM3+ Tested Pull

Be the first to review this product

Availability: Out of stock

$44.99

Availability: Out of stock

Submit Your Best Offer

Gigabyte

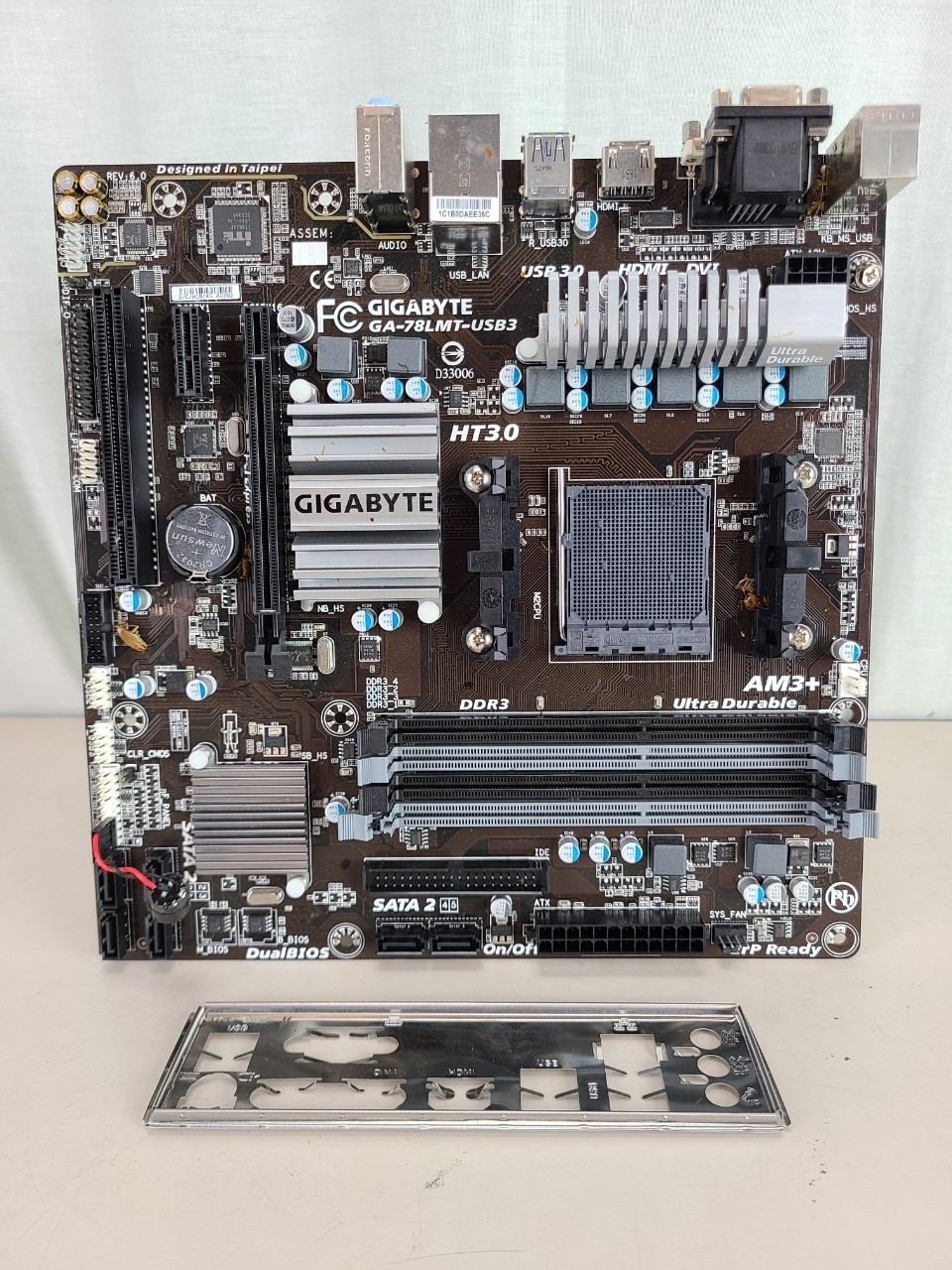

Gigabyte GA-78LMT-USB3 AMD Motherboard AM3+ Tested Pull

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

This is a tested pull in good condition. You will receive a rev 6 or Rev 5

MB Model: GA-78LMT-USB3

I/O Sheild Included

Specs:

CPU Socket Type  AM3+/AM3
CPU Type Support for AMD AM3+ processor
Support for AMD FX processor / AMD AM3 Phenom II processor / AMD Athlon II processor

Chipset  AMD 760G
South Bridge AMD SB710

Number of Memory Slots 4x240pin
Memory Standard DDR3 1600(O.C.)/ 1333/ 1066
Maximum Memory Supported 32GB
Channel Supported  Dual Channel
PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x16
PCI Express x1 1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
PCI Slots 1 x PCI Slot
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s  6 x SATA 3Gb/s
SATA RAID 0/1/10/JBOD
Audio Chipset  Realtek ALC892
Audio Channels  2/4/5.1/7.1-channel*
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 10/100/1000Mbps
PS/2  1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub port
1 x DVI-D port
HDMI  1 x HDMI
RJ45 1 x RJ45
USB 3.0  2 x USB 3.0/2.0 ports
USB 1.1/2.0 4 x USB 2.0/1.1 ports
Audio Ports 3 x audio jacks (Line In/Line Out/Microphone)
Onboard USB 1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features Hyper Transport Bus:
HyperTransport 3.0
Support up to 5200 MT/s

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 5)

BIOS:
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features:
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for EasyTune (Note 6)
Support for Smart Recovery2
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share

Bundle Software:
Norton Internet Security (OEM version)

Operating System:
Support for Windows 7/XP

(Note 5) Whether the fan speed control function is supported will depend on the cooler you install.

;

Additional Information

SKU M11944
UPC Does not apply
Brand Gigabyte
Part Number GA-78LMT-USB3
Category No
Condition Used
Free Shipping No
