Details

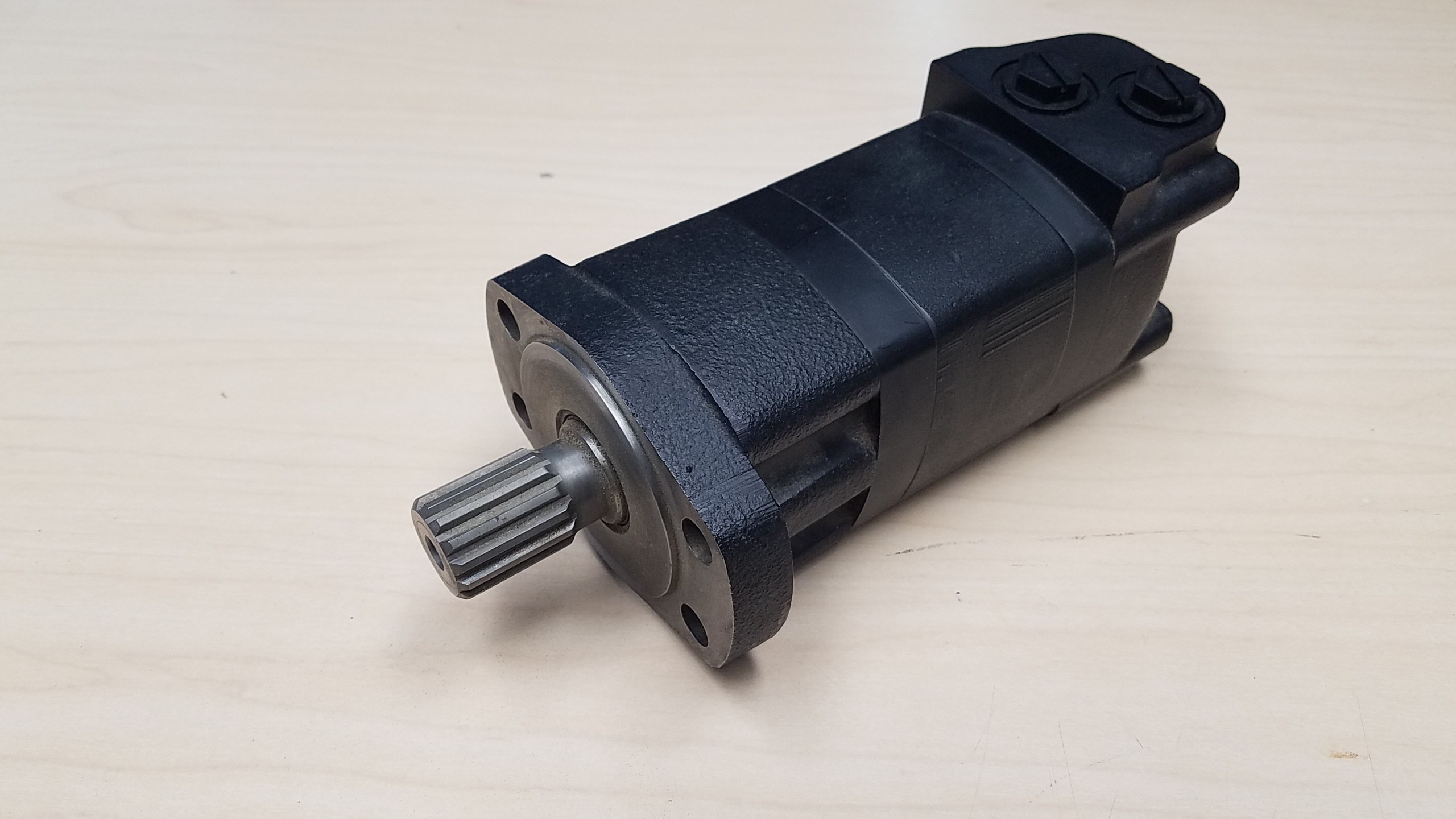

This is a Eaton Char-Lynn 104-3150-006 Hydraulic Motor. The motor is out of the original box it is unused.
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIS | 02 | 2000 SERIES |
| DISPLACEMENT | 187 | 306.6 CM3/R [18.71 IN3/R] |
| MOUNTING TYPE | AJ | STANDARD (MAGNETO), 4 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. 2.79 [.110] PILOT LENGTH |
| OUTPUT SHAFT | 04 | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH |
| PORTS | AA | .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| CASE FLOW OPTION | 01 | .4375-20 UNF-2B SAE O-RING PORT |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE FLOW OPTION | 00 | NONE |
| GEROLER OPTION | 1 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
| ACCESSORIES | 00 | NONE |
| SPECIAL FEATURES (HARDWARE) | 00 | NONE |
| SPECIAL FEATURES (ASSEMBLY) | 00 | NONE |
| PAINT/PACKAGING | AB | PRIMER LOW GLOSS BLACK, INDIVIDUAL BOX |
| CUSTOMER IDENTIFICATION | AA | NONE |
| DESIGN CODE | F | SIXTH |
Additional Information
| SKU | M11158 |
|---|---|
| UPC | Does not apply |
| Brand | Eaton Char-Lynn |
| Part Number | 104-3150-006 |
| Condition | Open Box |
| Free Shipping | Yes |
